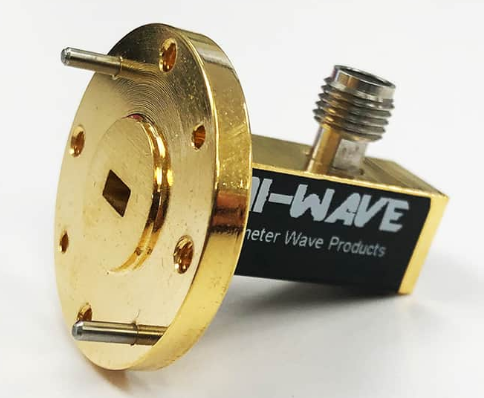

?Mi-Wave波導到同軸支持器
推送時長(chang)：2022-11-01 16:43:40 看：849
Mi-Wave的410系例波導到同軸匹配器可能有效率的從梯形波導選用同軸鏈接器。全波導下行帶寬從8.2到110GHz。低放損耗費和駐波比是這些波導同軸支持器基本特征的特質。低投資成本的生產方式版本升級是能夠 讓產品和車身廠軟件。檢測室最高級別也能夠 為其它的主要參數。Mi-Wave的同軸到波導替換器要求網絡通訊主設備的要求，是現下市場上適于的最好的的波導轉變替換器一種。
功能
可(ke)以提供(gong)成(cheng)本(ben)更低投入傳奇
平率時間范圍 8.2 至 110 GHz
帶來了四種(zhong)同軸連接方式器
實(shi)踐室動用的(de)高特點安(an)卓(zhuo)版本。
Mi-Wave是(shi)家用(yong)型(xing)和(he)軍工企業用(yong)直(zhi)(zhi)徑波(bo)(bo)物品(pin)國際(ji)領行者(zhe)，就能夠(gou)展示 直(zhi)(zhi)徑波(bo)(bo)元器(qi)(qi)和(he)控制器(qi)(qi)解(jie)決辦法(fa)細(xi)則(ze)。物品(pin)線是(shi)指(zhi)：變(bian)小(xiao)器(qi)(qi)、混(hun)頻(pin)(pin)器(qi)(qi)、衰減器(qi)(qi)、濾波(bo)(bo)器(qi)(qi)、控制開(kai)關、T/R、全向天線、反射強度鏡等(deng)，所一(yi)般(ban)包(bao)括聲音頻(pin)(pin)率達到了320GHz.
珠海市(shi)立(li)維創展科技信息(xi)有效平臺受權地區代理產品Mi-Wavemm波廠(chang)品，歡迎辭咨訊。
寶貝詳情知道Mi-Wave請選擇：//dev.www.zb5858.cn/brand/52.html
Model | Band | Frequency (GHz) | Insertion Loss (dB) | Return Loss (dB) | Power Handling (W) | Waveguide Port | Coaxial Port |
410X/39/NF | X-Band | 8.2-12.4 | 0.4 | 16 | 400 | WR-90 Waveguide, UG-39/U Flange | NF- Female connector |
410X/39/SMAF | X-Band | 8.2-12.4 | 0.4 | 17 | 150 | WR-90 Waveguide, UG-39/U Flange | SMA- Female connector |
410X/39/SMAM | X-Band | 8.2-12.4 | 0.4 | 16 | 150 | WR-90 Waveguide, UG-39/U Flange | SMA-Male connector |
410(51)/UBR180/CKF | WR-51 | 15-12 | 0.3 | 20 | 10 | WR-51 Waveguide, UBR180 Flange w "O" Ring | CK-Female connector |
410(34)/596/KF | WR-34 | 22-33 | 0.4 | 20 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | K-Female connector |
410(34)/595/KF | WR-34 | 22-33 | 0.4 | 17 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | K-Female connector |
410(34)/595/3.5mmF | WR-35 | 22-33 | 0.4 | 20 | 10 | WR-34 Waveguide, UG-596 Flange w "O" Ring | 3.5 mm Female Connector |
410(75)/SMAF | WR-75 | 10-15 | 0.3 | 20 | 150 | WR-75 Waveguide | SMA Female |
410Ku/419/SMAF | Ku-Band | 12.4-18 | 0.3 | 20 | 150 | WR-62 Waveguide, UG-419 Flange | SMA Female |
410K/595/SMAF | K-Band | 18-26.5 | 0.4 | 20 | 150 | WR-42 Waveguide with UG-595/U Flange | SMA-Female |
410K/595/KF | K-Band | 18-26.5 | 0.4 | 20 | 10 | WR-42 Waveguide, UG-595/U Flange | K-Female connector |
410A/599/KF | Ka-Band | 26.5-40 | 0.4 | 20 | 10 | WR-28 Waveguide, UG-599/U Flange | K-Female connector |
410A/599/KM | Ka-Band | 26.5-40 | 0.4 | 20 | 10 | WR-28 Waveguide, UG-599/U Flange | K-Male connector |
410B/383/KF | Q-Band | 33-40 | 0.5 | 20 | 10 | WR-22 Waveguide with UG-383/U Flange | K-Female connector |
410B/383/KM | Q-Band | 33-40 | 0.4 | 20 | 10 | WR-22 Waveguide with UG-383/U Flange | 2.92mm (K) Male connector |
410B/383/2.4mmF | Q-Band | 33-50 | 0.4 | 20 | 10 | WR-22 Waveguide, UG-383/U Flange | 2.4 mm Female Connector |
410B/383/2.4mmM | Q-Band | 33-50 | 0.4 | 20 | 10 | WR-22 Waveguide, UG-383/U Flange | 2.4 mm Male Connector |
410U/383/1.85mmF | U-Band | 40-60 | 0.5 | 17 | 10 | WR-19 Waveguide with UG-383/U-M Flange | 1.85 mm Female connector |
410U/383/1.85mmM | U-Band | 40-60 | 0.5 | 17 | 10 | WR-19 Waveguide with UG-383/U-M Flange | 1.85 mm Male Connector |
410V/385/1.85mmF | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide With UG-385/U Flange | 1.85 mm Female connector |
410V/385/1.85mmM | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.85 mm Male connector |
410V/385/1.85mmF | V-Band | 50-67 | 0.5 | 17 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.85 mm Female connector |
410V/385/1.00mmF | V-Band | 50-67 | 0.5 | 15 | 10 | WR-15 Waveguide with UG-385/U Flange | 1.00 mm Female connector |
410E/387/1.00mmM | E-Band | 60-90 | 1 | 15 | 10 | WR-12 Waveguide, UG-387/U Flange | 1.85 mm Male connector |
410E/387/1.00mmF | E-Band | 60-90 | 1 | 15 | 10 | WR-12 Waveguide, UG-387/U Flange | 1.00 mm Female connector |
410W/387/1.00mmM | W-Band | 75-110 | 1.2 | 15 | 10 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Male connector |
410W/387/1.00mmF | W-Band | 75-110 | 1.2 | 15 | 10 | WR-10 Waveguide, UG-387/U-M Flange | 1.00 mm Female connector |
