MIS 電解電貯罐SemiGen

分(fen)享時間：2022-10-14 16:35:19   瀏(liu)覽記錄(lu)：1396

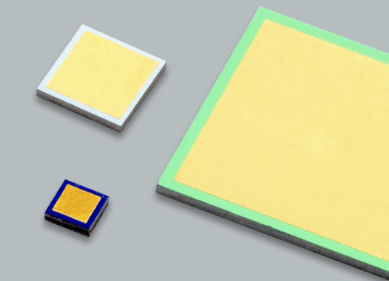

SemiGen的8000和8100國產MIS電玻璃容器器有更多種電玻璃容器范疇和尺碼。它是由高級工原料料制作而成而成，由氧化的物/氮化層組合式而成，能具備低介電不足和高隔離電壓降。半根微波加熱射頻微波加熱處理集成電路芯片電感器新產品僅以處理集成電路芯片狀態能具備。

特征(zheng)描述：

特別高的(de)Q

極較低溫(wen)度標準值

低(di)耗(hao)散因素(su)

長時(shi)相對穩界定

主(zhu)視圖和正反(fan)面金觸頭

薄(bo)至(zhi)3mil以局限(xian)電感

采用：

使用以還要(yao)直(zhi)流電電養(yang)護(hu)、RF旁路或放小器(qi)線路、振動器(qi)、操縱(zong)啟閉、濾波器(qi)和乘法(fa)器(qi)的(de)特定調諧(xie)的(de)應(ying)用。

SemiGen是意大利兩家晶圓(yuan)級rf射頻(pin)元電子(zi)元器(qi)件自我創(chuang)作(zuo)型制造(zao)廠商，從(cong)晶圓(yuan)到封裝形式元電子(zi)元器(qi)件, 不斷研發創(chuang)新非(fei)常(chang)豐富，從(cong)核工業級MIL-PRF 38534到軍用裝備MIL-PRF 19500、750和883，SemiGen著力推進于出具優異(yi)的性(xing)能(neng)和正規(gui)性(xing)。

廣州市立維創展網絡有限(xian)機構(gou)機構(gou)，商標(biao)授權進口代(dai)理(li)于我們區城產品SemiGen設備，并給予提供(gong)(gong)服(fu)務(wu)顧問(wen)和售后維修提供(gong)(gong)服(fu)務(wu)技術性支持軟(ruan)件(jian)提供(gong)(gong)服(fu)務(wu)。

祥(xiang)情詢問SemiGen請(qing)點選：//dev.www.zb5858.cn/brand/64.html

8100 Series Capacitors, Working Voltage >100V

Capacitance Range	Chip Size (±.002”) Dim A x Dim B x Dim C	Type
0.1 pf thru 1.9 pf	.010" x .010" x .005"	810R1 thru 811R9
2.0 pf thru 9.9 pf	.015" x .015" x .005"	812R0 thru 819R9
10.0 pf thru 29.0 pf	.020" x .020" x.006"	8110R thru 8129R
30.0 pf thru 49.0 pf	.030" x .030" x.006"	8130R thru 8149R
50.0 pf thru 99.0 pf	.040" x .040" x .008"	8150R thru 8199R
100 pf thru 199 pf	.050" x .050" x .008"	81100 thru 81199
200 pf thru 399 pf	.070" x .070" x.008"	81200 thru 81399

8000 Series Capacitors, Working Voltage >50V

Capacitance Range	Chip Size (±.002”) Dim A x Dim B x Dim C	Type
2.0 pf thru 9.9 pf	.010" x .010" x .005"	802R0 thru 809R9
10.0 pf thru 29.0 pf	.015" x .015" x .005"	8010R thru 8029R
30.0 pf thru 49.0 pf	.020" x .020" x.006"	8030R thru 8049R
50.0 pf thru 99.0 pf	.030" x .030" x.006"	8050R thru 8099R
100 pf thru 199 pf	.040" x .040" x .008"	80100 thru 80199
200 pf thru 399 pf	.050" x .050" x .008"	80200 thru 80399
400 pf thru 600 pf	.070" x .070" x.008"	80400 thru 80600

Tolerance Table

Tolerance +
A = .05 pF	G = 2%
B = .1 pF	J = 5%
C = .25 pF	K = 10%
D = .5 pF	M = 20%
F = 1%
Standard Tolerance is +10%

Maximum Ratings
Parameters	Rating
Operating Temperature	-55° C to +150° C
Storage Temperature	-65° C to +200° C
Temperature Coefficient	190 ppm/°C Max 40 ppm/°C typical
Voltage Breakdown	Varies according
