CINCON轉化成器DIP / SMD 3-75W

上架(jia)的時間：2022-03-14 16:40:05     瀏覽記錄(lu)：989

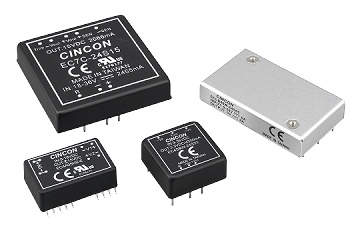

CINCON的DIP DC-DC互轉器體現了各個封裝主要形式，舉例說明3W至15W的DIP24或SMD24打包封裝形態，10W至30W的1”x1”封裝類型狀態，10W至75W的2”x1”打包封裝模式，2”x1.6”和2”x2”芯片封裝行駛從15W到40W。CINCON享有超29年的科研運作職場經驗，紛紛致力于打造于軌道交通銀行、產業生產的、ITE、5G中國電信、醫療衛生儀器和普通家庭使用教育領域。

面對工藝產(chan)生用(yong)途研究方(fang)向，CINCON幾(ji)乎所有(you)的(de)DIPDC-DC轉化器都在(zai)使用(yong)于(yu)行業的(de)生產(chan)軟件行業領(ling)域。

我們(men)對企業(ye)公(gong)司公(gong)共(gong)交通選用(yong)(yong)行(xing)業(ye)領域，有應用(yong)(yong)EN50155標淮的DIP切換器，這類DIP248W和10W、2”x1”封(feng)口(kou)狀態20W和40W。除此以外，CINCON具備2”x1”、20W、18:1加寬(kuan)輸(shu)進空(kong)間DC-DC改變器，富含選用(yong)(yong)系統的的大(da)批地理分布式應用(yong)(yong)工作電壓。

DIP變(bian)為器，DC到DC電源適配器制作商(shang)

CINCON定制(zhi)和制(zhi)作擁有互聯網行(xing)業(ye)規范(fan)標準(zhun)和引(yin)腳排列方式的(de)3W-75WDC/DCDIP改換(huan)器(qi)。基(ji)本特征是(shi)高(gao)高(gao)效、事業(ye)耐(nai)溫高(gao)、顯示范(fan)圍(wei)內寬。CINCON會(hui)為各式各樣應該用科(ke)技領域(yu)出(chu)示非分(fen)隔和高(gao)分(fen)隔DC/DC換(huan)算器(qi)。成都 市立維(wei)創展科(ke)枝是(shi)CINCON電(dian)源(yuan)適配器(qi)包塊(kuai)的(de)一級代理經售商，給(gei)予CINCON交流電(dian)源(yuan)包塊(kuai)的(de)DC-DC轉成器(qi)、AC-DC供電(dian)、LED電(dian)源(yuan)模(mo)塊(kuai)等，護(hu)膚品原裝入口(kou)出(chu)口(kou)，的(de)質量有效保障，極有市場價格好處，邀請網絡(luo)咨(zi)詢

具體詳情掌握CINCON電請點一下：//dev.www.zb5858.cn/article/2177.html


18:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)
NEWEC7BW1820W8.5~160V12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
  UL62368-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
4:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AW3W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AW6W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC6AW8W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN50155 Compliant

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SBW10W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC4BW10W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55022 Class A

2.00x1.00x0.40(DIP)
NEWEC7AW10W18~74V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC6AW-11010W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
  UL60950-1 & CB
  EN45545-2
  EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC8AW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC3SBW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC5BW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5C15W18~72V, 9~36V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC1SC20W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5VEN55022 Class A2.00×1.60×0.45(DIP)

EC4SBW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC7BW-11020W43~160V12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
NRNDEC3SCW30W18~75V, 9~36V12V, 15V, 3.3V, 5V

1.5KVdc Isolation
  EN60950-1

2.00×1.60×0.40(DIP)

EC5SBW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)
NRNDEC6E30W18~72V, 9~36V+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V,   ±12V, ±15V500Vdc Isolation2.56x3.00x0.83(DIP)

EC9BW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

ECLB40W40W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB40W-11040W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB60W60W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
NEWECLB75W75W18~75V, 9~36V12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
2:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3A3W18~36V, 36~72V, 4.5~6V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3AB3W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)

NRNDEC3BB7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
  EN55022 Class B

2.00x1.00x0.40(DIP)

EC3A-E3W18~36V, 36~72V, 4.5~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC4A6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AB6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)


EC4A-E6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC6A7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SB10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)


EC4BE10W18~36V, 36~72V, 9~18V12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC4BU10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7A10W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3SB15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)

NRNDEC3C15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500Vdc Isolation2.00x2.00x0.40(DIP)

EC5BU15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5BE15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7B20W18~36V, 36~75V, 9~18V1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V,   ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

EC6C30W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC7C40W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3/5V, 3.3/±12V,   3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)
High Isolation 6KV

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC4AW-H66W18~72VDC, 9~36VDC12V, 5V, ±12V, ±15V

6KVdc Isolation
  EN55032 Class A
  5uA Leakage Current

1.25x0.80x0.40
  (DIP24)

+/-10% Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AE3W12V, 24V, 28V, 48V, 5V12V, 15V, 5V, ±12V, ±15V

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
