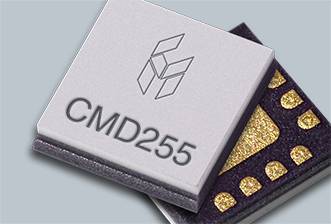

Custom MMIC分立控制開關
推(tui)出(chu)時刻：2021-11-03 16:42:54 訪問：1393
分立開關IC適(shi)用于高(gao)頻(pin)電路(lu)，無線通訊設(she)備的(de)信號路(lu)徑轉換的(de)元器(qi)件。
Custom MMIC分立轉(zhuan)換(huan)開關軟件品(pin)類其中包含從(cong)單(dan)刀(dao)單(dan)擲(SPST)到單(dan)刀(dao)正投(tou)(SPnT)和轉(zhuan)成n極正投(tou)(nPnT)控制(zhi)開關的企業產(chan)品(pin)。Custom MMIC分(fen)立觸點開關動(dong)用多種(zhong)不同枝(zhi)術(shu)使用展現(xian)出了(le)大面積的耐(nai)腐蝕性枝(zhi)術(shu)，構(gou)成SOI、pHEMT、GaN和PIN二級管。
注意特質
移動寬帶頻次遍布；
具(ju)備(bei)高直(zhi)線度的低(di)放入耗(hao)損率；
具備光反(fan)射式(shi)和(he)消化式(shi)SPDT和(he)SPnT的大使用；
可能提(ti)供小尺寸、薄型二(er)極管封裝方式；
為GaN的食品掌握比(bi)較高(gao)的瓦數除理高(gao)技(ji)術；
典例技術(shu)應(ying)用這個(ge)領域
運動的產品；
無限理論知識投建；
Wifi；
汽車；
有線寬帶視頻(CATV)；
中(zhong)國國防科(ke)技信息和航空(kong)(kong)運輸航空(kong)(kong)；
成都 市立維(wei)創展(zhan)科技開發是CUSTOM MMIC的(de)銷售(shou)商商，立維(wei)創展(zhan)請求篩選滿意(yi)供給的(de)最適合的(de)的(de)MMIC調整(zheng)紅(hong)外(wai)光頻(pin)rf射(she)(she)頻(pin)射(she)(she)4g信號鏈。CUSTOM MMIC也(ye)是個齊全(quan)性(xing)的(de)ISO資質認證(zheng)和同行型絕好MMICs生產(chan)商商。廠家直銷快增速的(de)高特性(xing)頻(pin)射(she)(she)/微波(bo)加熱rf射(she)(she)頻(pin)MMIC產(chan)品設備系列作(zuo)品。
Part # | Switch Type | Frequency Min
MHz | Frequency Max
MHz | Insertion Loss
dB | Isolation
dB | Switching Speed
ns | IIP2
dBm | IIP3
dBm | IP0.1dB
dBm | IP1dB
dBm | Control Lines
# | Voltage
V | Current
mA |
CMD195 | SPDT | DC | 20,000 | 2 | 41 | 1.8 |
|
| 21 | 25 | 2 | 0, -5 |
|
CMD195C3 | SPDT | DC | 18,000 | 2 | 37 | 1.8 |
|
| 21 | 25 | 2 | 0, -5 |
|
CMD196 | SPDT | DC | 28,000 | 1.75 | 46 | 1.8 |
|
| 18 | 23 | 2 | 0, -5 |
|
CMD196C3 | SPDT | DC | 18,000 | 1.5 | 46 | 1.8 |
|
| 18 | 23 | 2 | 0, -5 |
|
CMD203 | SP4T | DC | 20,000 | 2.4 | 45 | 66 |
|
| 14 | 21 | 2 | 0, -5 |
|
CMD203C4 | SP4T | DC | 20,000 | 2.4 | 39 | 66 |
|
| 14 | 21 | 2 | 0, -5 |
|
CMD204 | SPST | DC | 20,000 | 1 | 50 | 1.8 |
|
| 25 | 25 | 2 | 0, -5 |
|
CMD204C3 | SPST | DC | 20,000 | 1.3 | 48 | 1.8 |
|
| 25 | 25 | 2 | 0, -5 |
|
CMD215 | SPDT | DC | 40,000 | 2.3 | 36 | 4 |
|
| 17 | 19 | 2 | 0, -5 |
|
CMD230 | SPDT | DC | 26,000 | 1.4 | 40 | 3.4 |
|
| 21 | 21 | 2 | 0, -5 |
|
CMD234C4 | SP3T | DC | 18,000 | 2 | 40 | 66 |
|
| 23 | 21 | 2 | 0, -5 |
|
CMD235 | SP5T | DC | 18,000 | 2.8 | 35 | 60 |
| 36 | 18 |
| 3 | 0, -5 |
|
CMD235C4 | SP5T | DC | 18,000 | 2.5 | 40 | 66 |
|
| 20 | 21 | 3 | 0, -5 |
|
CMD236 | SP6T | DC | 18,000 | 2.8 | 30 | 60 |
| 36 | 18 |
| 3 | 0, -5 |
|
CMD236C4 | SP6T | DC | 18,000 | 2.5 | 42 | 60 |
|
| 18 | 16 | 3 | 0, -5 |
|
CMD272P3 | DPDT | DC | 10,000 | 1 | 43 | 4 |
|
| 25 | 25 | 2 | 0, 5 |
|
CMD273P3 | DPDT | DC | 12,000 | 1.7 | 42 | 12 |
|
| 25 | 25 | 2 | 0, 5 |
|
QM11022 | DPDT | 600 | 6,000 | 0.26 to 0.61 | 34 to 21 | 1,800 |
|
|
|
| 1 | 2.4 to 5.5 | 0.57 |
QM11022A | DPDT | 600 | 8,250 |
|
|
|
|
|
|
|
|
|
|
QM12002 | SPDT | 698 | 3,800 | 0.24 to 0.5 | 41 to 23 | 2,000 |
|
|
|
| 1 | 2.4 to 5.5 | 0.42 |
QM12038 | SP8T | 700 | 2,700 |
|
| 2,000 |
|
|
|
|
|
|
|
QM12114 | SP4T | 698 | 6,000 | 0.23 to 0.6 | 39 to 53 | 2,000 |
|
|
|
| 1 | 1.65 to 1.95 | 0.003 to 0.030 |
QPC1022 | SPDT | 5 | 6,000 | 0.25 | 56 | 1,500 | 129 | 76 | 37 |
| 2 | 1.8 to 2.7,0 to 0.45 | 0.052 to 0.1 high,0.002 to 0.005 low |
QPC1217Q | DPDT | 700 | 6,000 | 0.33 | 33.6 |
|
| 77 |
|
|
| 2.8 | 57 |
QPC2511 | SP3T | 2 | 11 | 1.5 | 20 | 50 |
|
|
|
|
| 0, -30 |
|
QPC3024 | SPDT | 5 | 3,000 | 0.82 | 66 | 1,500 | > 60 | 61 | 36 |
| 1 | 5 | 0.130 |
QPC3025 | SPDT | 30 | 4,200 | 0.35 | 40 | 8,580 |
| 75 | 45 |
| 1 | 2.7 to 5.5 | 0.09 |
QPC4270 | SPST | 5 | 3,300 | 0.4 at 1 GHz | 45 at 1 GHz |
| 124 at 1000 MHz, 12 dBm per tone | 75 at 1000 MHz, 12 dBm per tone | 37 |
| 1 | 3 | 0.55 |
QPC6014 | SPST | 5 | 6,000 | 0.84 | 53 | 165 | 110 | 58 | 36 |
| 1 | 1.8 | 0.075 |
QPC6034 | SP3T | 5 | 6,000 | 0.93 | 62 | 150 | 110 | 59 | 36 |
| 2 | 5 | 0.09 |
QPC6041 | SP4T | 500 | 8,000 | 0.48 | 30 | <353 |
| 63 |
|
|
| 2.7 to 5.5 | 0.099 |
QPC6044 | SP4T | 5 | 6,000 | 0.98 | 50 | 150 | 117 | 35.5 | 36 |
| 3 | 5 | 0.1 |
QPC6054 | SP5T | 5 | 6,000 | 1.18 | 57 | 150 | 117 | 59 | 36 |
| 3 | 5 | 0.1 |
QPC6064 | SP6T | 5 | 6,000 | 1.1 | 57 | 150 | 117 | 59 | 36 |
| 3 | 5 | 0.09 |
QPC6324 | SPDT | 5 | 6,000 | 0.9 | 62 | 150 |
| 60 |
|
| 2 | 5 | 0.1 |
QPC6742 | SP4T | 5 | 2,000 | 0.35 | 34 | 600 | 130.6 | 82 | 34 |
| 2 | 5 | 0.065 |
QPC6762 | SP6T | 5 | 2,000 | 0.4 | 34 | 350 | 121 | 75 | 33 |
| 2 | 5 | 0.065 |
QPC7512 | SPDT | 5 | 3,300 | 0.35 | 40 | 2,000 | 129 | 75 | 41 |
| 1 | 3 | 0.1 |
QPC7522 | SPDT | 5 | 3,300 | 0.35 | 40 | 2,600 | 124 | 75 | 37 |
| 1 | 5 | 0.05 |
QPC8010Q | SPDT | 5 | 6,000 | 0.3 | 37 |
|
| 75 |
|
|
| 3 | 2.5 |
QPC8015Q | SPDT | 617 | 6,000 | 0.30 @ 960 MHz | 41 @ 960 MHz | 2,500 |
|
|
|
| 1 | 2.4 to 5.5 |
|
QPC8019Q | SPDT | 617 | 8,000 | 0.6 @ 6000 MHz | 27 @ 6000 MHz | 240 |
|
| 31 |
| 1 | 1.8 | 0.04 |
RF1147 | SP4T | 100 | 3,500 | 0.3 | 29 |
| 108 | 68 |
|
|
| 3 |
|
RF1602 | SPDT | 100 | 3,500 | 0.3 | 43 |
| 129 | 75 |
|
|
| 3 |
|
RF1613A | SP3T | 100 | 2,700 | 0.3 | 30 |
| 128 | 74 |
|
|
| 3 |
|
RF1614A | SP4T | 100 | 2,700 | 0.3 | 30 |
| 129 | 74 |
|
|
| 3 |
|
RF1630 | SPDT | 100 | 6,000 | 0.18 to 0.54 | 42 to 22 | 2,000 |
|
|
|
| 1 | 2.65 | 0.59 |
RF1648 | SP3T | 699 | 2,690 | 0.33 to 0.64 | 55 to 26 | 2,000 |
|
|
|
| 2 | 2.4 to 5.8 | 0.065 |
RF1654A | SP4T | 100 | 2,700 | 0.3 | 30 |
|
|
|
|
|
| 3 |
|
RFSW1012 | SPDT | 5 | 6,000 | 0.3 | 37 | 2,000 | > 129 | 75 | 41 |
| 1 | 2.7 to 5 | 0.1 |
RFSW6023 | SPDT | 150 | 5,000 | 0.4 | 25 | 300 |
| 59 | 40 |
| 2 | 2.5 to 5 | 0.005 |
RFSW6024 | SPDT | 5 | 6,000 | 0.7 | 63 | 360 |
| 67 | 36 |
| 1 | 5 | 0.14 |
RFSW6042 | SP4T | 5 | 6,000 | 0.45 | 34 | 2,000 | 129 | 70 | 37 |
| 2 | 3 to 5 | 0.065 |
RFSW6062 | SP6T | 5 | 6,000 | 0.53 | 27 | 2,000 |
| 70 | 35 |
| 3 | 3 to 5 | 0.065 |
RFSW6222 | DPDT | 50 | 2,700 | 0.29 | 29 | 35 |
| 70 | 37 |
| 0 | 2.8 | 0.09 |
TGS2302 | SPDT | 4,000 | 20,000 | 0.9 | 35 |
|
|
|
|
|
| 2.7, -2.7 | 20 |
TGS2313 | SP3T | 4,000 | 18,000 | 1 | 35 |
|
|
|
|
| 3 | 2.7, -2.7 | 20 |
TGS4302 | SPDT | 27,000 | 46,000 | 0.9 | 27 | < 4 |
|
|
|
| 0 | 5, -5 | 20 |
TQP4M0008 | SPDT | 100 | 6,000 | 0.4 | 26 | 180 |
| 56 |
|
|
| 3.3 | 0.015 |
TQP4M0011 | SP3T | 100 | 6,000 | 0.6 | 34 |
|
|
|
|
|
| 3.3 | 0.015 |
