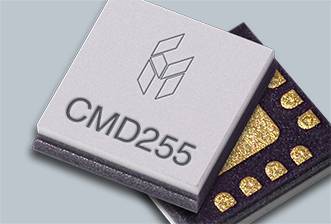

Custom MMIC帶動器放縮器
發(fa)布了(le)用時：2020-10-16 16:30:13 瀏覽網(wang)頁：2066
Custom MMIC驅動(dong)器(qi)放大器(qi)的設計是為(wei)了在發射(she)機鏈中的最終功率(lv)放大器(qi)之(zhi)前(qian)為(wei)增益級提供良(liang)好的線(xian)性(xing)或效率(lv)性(xing)能。Custom MMIC驅(qu)動器(qi)放大器(qi)使用諸如InGaPHBT、功(gong)率(lv)PHEMT、E/D PHEMT和GaN等工藝技術來支持(chi)高達46 GHz的頻率(lv)。
Custom MMIC驅使器拖動器的(de)最主要(yao)的(de)性能特點
有(you)效(xiao)
高(gao)非線性(xing)
高貼現率
環保(bao)定制家具(ju)(ju)MMIC帶動器縮(suo)放器的具(ju)(ju)代表性(xing)運用
信(xin)號(hao)塔
飲水機通信(xin)設(she)備
光電戰與(yu)統計
光學元件(jian)
點(dian)對點(dian)通信(xin)遠程電
VSAT
上海市立維創展社會是Custom MMIC的(de)代理(li)商商，立維(wei)創展(zhan)幫助(zhu)到選用能夠(gou)滿足供給(gei)的(de)最(zui)該(gai)用的(de)MMICseo微波rf頻射(she)rf頻射(she)rf頻射(she)的(de)信(xin)號鏈。Custom MMIC都是個全(quan)部(bu)性的ISO身份驗證和相同型必備MMICs產生(sheng)商(shang)商(shang)。產生(sheng)較快漲幅的高效能rf射頻(pin)/微波通(tong)信微波射頻(pin)MMIC護膚品(pin)系(xi)列表。
Part # | Frequency Min
MHz | Frequency Max
MHz | Gain
dB | OP1dB
dBm | OIP3
dBm | NF
dB | Voltage
V | Current
mA | Package Type | Package
mm |
CMD169P4 | 5,000 | 7,000 | 19 | 28.4 | 37 | 6.5 | 7 | 375 | Plastic QFN | 4.0 x 4.0 |
CMD170P4 | 7,500 | 9,000 | 30 | 28.3 | 34 | 6.5 | 7 | 365 | Plastic QFN | 4.0 x 4.0 |
CMD187C4 | 2,000 | 20,000 | 22.5 | 13 | 29 | 6 | 3 | 115 | Ceramic QFN | 4.0 x 4.0 |
CMD191C4 | 4,000 | 10,000 | 20 | 21.5 | 30 | 4.5 | 5 | 123 | Ceramic QFN | 4.0 x 4.0 |
CMD231 | 2,000 | 6,000 | 14.5 | 13.5 | 23.5 | 4.5 | 3 to 8 | 45 | Die |
|
CMD231C3 | 2,000 | 6,000 | 14.5 | 13.5 | 23.5 | 4.5 | 3 to 8 | 45 | Ceramic QFN | 3.0 x 3.0 |
CMD232 | 2,000 | 9,000 | 15 | 17 | 23 | 4.5 | 5 to 6 | 90 | Die |
|
CMD232C3 | 2,000 | 9,000 | 15 | 17 | 23 | 4.5 | 5 to 6 | 90 | Ceramic QFN | 3.0 x 3.0 |
CMD295 | 2,000 | 20,000 | 26.5 | 16 | 28.5 | 3.5 | 3 | 135 | Die |
|
CMD295C4 | 2,000 | 20,000 | 27 | 16 | 29 | 3 | 2 to 4 | 145 | Ceramic QFN | 4.0 x 4.0 |
CMD314 | DC | 10,000 | 18 | 30 | 34 | 4 | 12 | 450 | Die |
|
CMD315C4 | 4,000 | 10,000 | 19.5 | 21 | 33 | 5.5 | 5 | 143 | Ceramic QFN | 4.0 x 4.0 |
CMD317 | 1,000 | 24,000 | 16 | 24 | 33 | 3 | 5 to 8 | 225 | Die |
|
QPA2225D | 28,000 | 38,000 |
|
|
|
| 20 | 64 |
| 1.65 x 0.67 x 0.05 |
QPA9119 | 400 | 4,200 | 17.1 | 27.2 | 44 | 4.8 | 5 | 137 | QFN, 16-pin | 3.0 x 3.0 x 0.85 |
QPA9120 | 1,800 | 5,000 | 29 | 22 | 35 | 1.5 | 5 | 96 | QFN | 3x3 |
QPA9121 | 2,300 | 5,000 | 28 |
| 32 | 5 | 5 | 95 | SMT Laminate | 3 x 3 |
QPA9122 | 2.3 | 5.0 | 37 |
| 32 | 5 | 5 | 95 | SMT Laminate | 3 x 3 |
QPA9501 | 5,100 | 5,900 | 32 | 33 |
| 7 | 3.3 to 5 | 520 | QFN, 20-pin | 4.0 x 4.0 x 0.85 |
QPA9801 | 1,805 | 2,400 | 20 | 26.4 | 41.6 | 1.5 | 5 | 296 | QFN, 16-pin | 5.0 x 5.0 x 1.12 |
QPA9805 | 600 | 1,000 | 20 | 27.4 | 43.2 | 4.5 | 5 | 260 |
| 5.0 x 5.0 |
QPA9807 | 2,300 | 2,700 | 20 | 24.7 | 40.3 | 1.4 | 5 | 267 | SMT | 5.0 x 5.0 |
QPA9842 | 2,700 | 3,800 | 19.5 | 25 | 40.3 | 2.3 | 5 | 271 |
| 5 x 5 |
RF3827 | 5 | 1,500 | 20.5 | 25 | 38 | 1.3 | 5 to 9 | 120 | QFN, 16-pin | 3.0 x 3.0 x 0.63 |
RFPA2189 | 400 | 2,700 | 14.5 | 27 | 42.5 | 2.8 | 5 | 155 | SOT-89 | 4.5 x 2.5 x 1.5 |
RFPA3800 | 150 | 960 | 15 | 36 | 49 | 3.2 | 7 | 650 | SOIC-8 | 5.0 x 4.0 x 1.47 |
SXA389Z | 400 | 2,500 | 14 | 25 | 43 | 4.7 | 5 | 115 | SOT-89 | 4.5 x 2.45 |
SZA-3044Z | 2,700 | 3,800 | 24 | 31.5 |
| 5 | 5 | 205 | QFN | 4 x 4 |
SZM-3066Z | 3,300 | 3,800 | 34 | 33.5 |
| 5 | 5 | 600 | QFN | 6 x 6 |
TGA2509 | 2,000 | 22,000 | 17 |
|
|
| 12 | 1,100 | Die | 2.3 x 3.2 x 0.1 |
TGA2597 | 2,000 | 6,000 | > 24 |
| > 31.5 |
| 25 | 40 | Die | 2.14 x 1.5 x 0.1 |
TGA2597-SM | 2,000 | 6,000 | > 24 |
| > 32 |
| 25 | 40 | QFN | 4.0 x 4.0 x 0.85 |
TGA2598 | 6,000 | 12,000 | > 21 | > 33 |
|
| 25 | 100 | Die | 2.14 x 1.11 x 0.1 |
TGA2598-SM | 6,000 | 12,000 | 25 |
|
|
| 25 | 100 | QFN | 4.0 x 4.0 x 1.5 |
TGA2599-SM | 5,000 | 8,000 | > 23 |
|
|
| 25 | 50 | QFN | 4.0 x 4.0 x 0.85 |
TGA2731-SM | 2,700 | 4,000 | > 24 |
| > 30.7 |
| 6 | 900 | QFN | 5.0 x 5.0 x 0.85 |
TGA2958 | 13,000 | 18,000 | > 25 |
| -27 |
| 20 | 70 | Die | 2.14 x 1.25 x 0.1 |
TGA2958-SM | 13,000 | 18,000 | > 25 |
| -27 |
| 20 | 70 | QFN | 4.0 x 4.0 x 1.74 |
TQP7M9101 | 400 | 4,000 | 17.5 | 24.8 | 40 | 4 | 5 | 88 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9102 | 400 | 4,000 | 17.8 | 27.5 | 44 | 3.9 | 5 | 137 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9103 | 400 | 4,000 | 16.6 | 29.1 | 45 | 4.4 | 5 | 235 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9104 | 600 | 2,700 | 15.8 | 32.8 | 49.5 | 4.4 | 5 | 435 |
|
|
TQP7M9105 | 50 | 1,500 | 19.4 | 30 | 49 | 6.3 | 5 | 220 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9106 | 50 | 1,500 | 20.8 | 33 | 50 | 4.8 | 5 | 455 |
|
|
TQP9107 | 600 | 960 | 35.5 | 31.4 | 46 | 5 | 4.3 | 370 | DFN, 14-pin | 3.5 x 4.5 x 0.9 |
TQP9108 | 1,710 | 2,170 | 30.5 | 31.3 | 46 | 5 | 4.3 | 300 | DFN, 14-pin | 3.5 x 4.5 x 0.9 |
TQP9109 | 1,800 | 2,700 | 30.5 | 27.5 | 46 | 3.5 | 5 | 225 | QFN, 20-pin | 4.0 x 4.0 x 1.02 |
TQP9111 | 1,800 | 2,700 | 29.8 | 32.5 | 46 | 6.2 | 5 | 545 | QFN, 20-pin | 4.0 x 4.0 x 1.02 |
TQP9113 | 1,800 | 2,700 | 27.2 | 30.4 | 42 | 4.7 | 5 | 216 | QFN, 20-pin | 4.0 x 4.0 x 0.85 |
