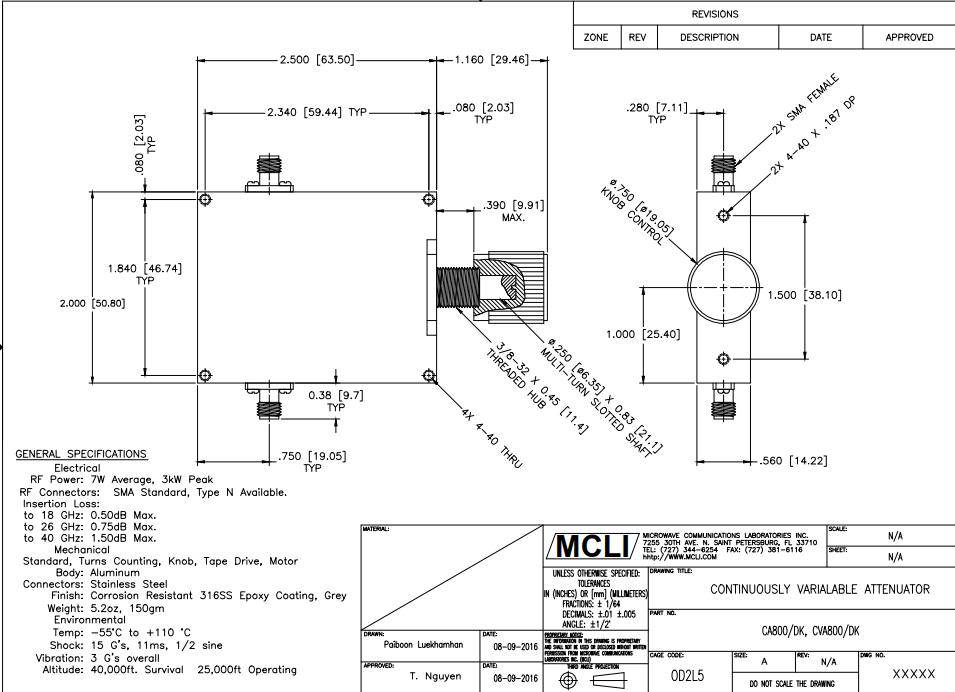

CVA823-60旋鈕可調衰減器大衰減度60dB

核心性能參數

頻率：6~18GHz

衰減度： 50~60dB熱效率：7W平均值， 3KW最高值操作內容：標準的轉鈕設定接口方式：SMA

工作溫度范圍：-55~110°C

定貨周期公式： 8-10周

品牌：MCLI

服務商品詳情頁簡介

Part #	Attenuator Type	Frequency Range (GHz)		Insertion Loss (dB)	Attenuation Range (dB)	Flatness (±dB)	VSWR Max.
Part #	Attenuator Type	Min	Max	Insertion Loss (dB)	Attenuation Range (dB)	Flatness (±dB)	VSWR Max.
	Dial	0.406	0.4061	0.5	50	N/A	1.50:1
	Standard	10.7	12.7	0.5	50	1.9	1.50:1
	Standard	10.7	14.5	0.5	50	2.25	1.50:1
	Dial	10.7	12.7	0.5	50	1.9	1.50:1
	Dial	10.7	14.5	0.5	50	2.25	1.50:1
	Knob	10.7	12.7	0.5	50	1.9	1.50:1
	Knob	10.7	14.5	0.5	50	2.25	1.50:1
	Standard	13	14.5	0.5	50	1	1.50:1
	Dial	13	14.5	0.5	50	1	1.50:1
	Knob	13	14.5	0.5	50	1	1.50:1
	Standard	5.8	6.5	0.5	50	2	1.50:1
	Dial	5.8	6.5	0.5	50	2	1.50:1
	Knob	5.8	6.5	0.5	50	2	1.50:1
	Standard	6	11	0.5	60	N/A	1.50:1
	Standard	6	18	0.9	60	N/A	1.50:1
	Standard	6	18	0.5	60	N/A	1.50:1
	Dial	6	11	0.5	60	N/A	1.50:1
	Dial	6	18	0.5	60	N/A	1.50:1
	Dial	6	18	0.9	60	N/A	1.50:1
	Standard	6	11	0.5	60	N/A	1.50:1
	Standard	6	18	0.5	60	N/A	1.50:1
	Dial	6	11	0.5	60	N/A	1.50:1
	Dial	6	18	0.5	60	N/A	1.50:1
	Knob	6	11	0.5	60	N/A	1.50:1
	Knob	6	18	0.5	60	N/A	1.50:1
	Standard	7.2	7.8	0.5	50	1.25	1.50:1
	Standard	7.2	8.4	0.5	50	2	1.50:1
	Dial	7.2	7.8	0.5	50	1.25	1.50:1
	Dial	7.2	8.4	0.5	50	2	1.50:1
	Knob	7.2	7.8	0.5	50	1.25	1.50:1
	Knob	7.2	8.4	0.5	50	2	1.50:1
	Standard	7.9	12.7	0.5	60	N/A	1.50:1
	Dial	7.9	12.7	0.5	60	N/A	1.50:1
	Standard	7.9	8.4	0.5	50	1.25	1.50:1
	Dial	7.9	8.4	0.5	50	1.25	1.50:1
	Knob	7.9	8.4	0.5	50	1.25	1.50:1
	Dial	DC	2.5	1	50	N/A	1.50:1
