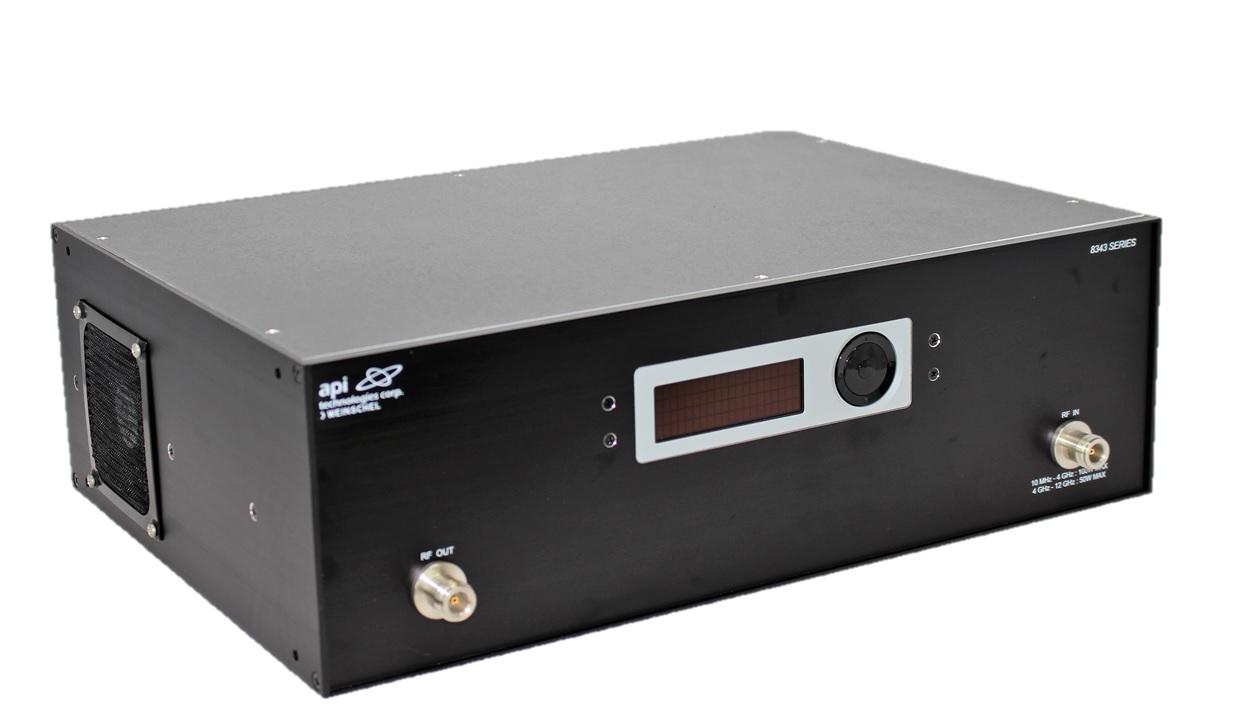

8343高功率可編程衰減器系統100W

決定性基本參數

頻率：DC-12GHz

衰減度：15~31dB插損： 2.5dB@4GHz接口方式：N型母頭駐波比： 1.6@4GHz購貨生長期： 8-10周

品牌：Aeroflex-API Tech

產品詳細信息簡單介紹


產品選型如下：

Item #	Frequency Range	Attenuation Range	Insertion Loss	Connector Type	Maximum SWR	Connector Location
	DC-12 GHz	15 dB	2.5dB @ 4GHz, 4.0dB @ 12 GHz	N Female	1.6 @ 4GHz, 2.3 @ 12GHz	Front
	DC-12 GHz	15 dB	2.5dB @ 4GHz, 4.0dB @ 12 GHz	N Female	1.6 @ 4GHz, 2.3 @ 12GHz	Rear
	DC-12 GHz	15 dB	2.5dB @ 4GHz, 4.0dB @ 12 GHz	N Female	1.6 @ 4GHz, 2.3 @ 12GHz	Through
	DC-12 GHz	31 dB	3.0dB @ 4GHz, 4.5dB @ 12 GHz	N Female	1.6 @ 4GHz, 2.3 @ 12GHz	Front
	DC-12 GHz	31 dB	3.0dB @ 4GHz, 4.5dB @ 12 GHz	N Female	1.6 @ 4GHz, 2.3 @ 12GHz	Rear
	DC-12 GHz	31 dB	3.0dB @ 4GHz, 4.5dB @ 12 GHz	N Female	1.6 @ 4GHz, 2.3 @ 12GHz	Through
