?Q20HK-2150R定向耦合器
?Q20HK-2150R定向耦合器
注重因素

Q20HK-2150R定向耦合器

平率：2.1 – 2.2 GHz藕合：20.五分貝±0.五分貝導向性：30音貝駐波比：1.15:1讀取損耗費：0.3dB熱效率：80瓦評估方法板722-0006-07-E01進貨過渡期：6-8周

品牌：Electro-Photonics

品牌詳情頁價紹

2100-2200 MHz Directional Coupler

The Q20HK-2150R is a bi-directional coupler with high directivity and high power handling. Q20HK-2150R is a replacement for Soshin P/N GSC321-20M2150. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

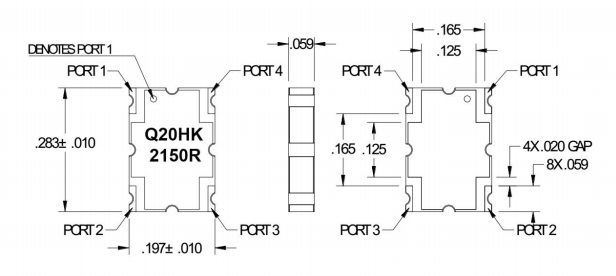

  • Size: 0.283 x 0.197 inches
  • Frequency: 2.1 – 2.2 GHz
  • Coupling: 20.5 dB ± 0.5 dB
  • Directivity: 30 dB
  • VSWR: 1.15:1
  • Insertion Loss: 0.3 dB
  • Power: 80 W
  • Evaluation board 722-0006-07-E01
