?Q20HK-1900R定向耦合器
?Q20HK-1900R定向耦合器
最重要數據

Q20HK-1900R定向耦(ou)合器

聲音頻率:1.8 – 2 GHz交叉耦合:20聲音頻率±0.5聲音頻率目標性:20噪音分貝駐波比:1.3:1復制到耗損率:0.3dB電機功率:80瓦評估報告板722-0006-07-E01進貨生長期:6-8周

品牌:Electro-Photonics

品牌詳細情況分享

1800-2000 MHz Directional Coupler

The Q20HK-1900R is a bi-directional coupler with high directivity and high power handling. Q20HK-1900R is a replacement for Soshin P/N GSC311-20M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

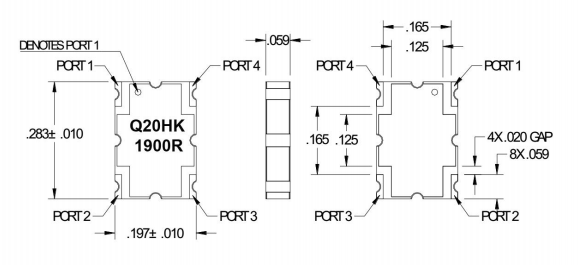

  • Size: 0.283 x 0.197 inches
  • Frequency: 1.8 – 2 GHz
  • Coupling: 20 dB ± 0.5 dB
  • Directivity: 20 dB
  • VSWR: 1.3:1
  • Insertion Loss: 0.3 dB
  • Power: 80 W
  • Evaluation board 722-0006-07-E01
