?Q15HK-900R定向耦合器
?Q15HK-900R定向耦合器
關鍵規格

Q15HK-900R定(ding)向(xiang)耦合器

規律:0.8 – 1 GHz解耦:14聲音分貝±1.0聲音分貝方向上性:16聲音分貝駐波比:1.42:1添加圖片消耗的資金:0.3dB功效:50瓦分析評估板722-0006-07-E01備貨時間:6-8周

品牌:Electro-Photonics

企業產品商品詳情講述

800-1000 MHz Directional Coupler

The Q15HK-900R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

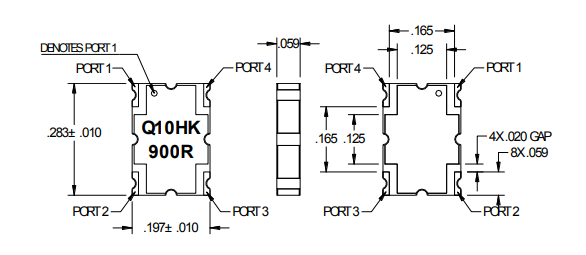

  • Size: 0.283 x 0.197 inches
  • Frequency: 0.8 – 1 GHz
  • Coupling: 15 dB ± 1.0 dB
  • Directivity: 16 dB
  • VSWR: 1.42:1
  • Insertion Loss: 0.3 dB
  • Power: 50 W
  • Evaluation board 722-0006-07-E01
