EC2SBW-24S15底部隔離式DC-DC改換器CINCON

發布了事件：2024-08-02 08:45:51 打開網(wang)頁：6045

　　EC2SBW-24S15隔離式DC-DC轉換器是CINCON公(gong)(gong)司(si)生(sheng)產的(de)一(yi)款高性(xing)能(neng)電源轉換設備，屬(shu)于(yu)EC2SBW系列。EC2SBW系列是CINCON公(gong)(gong)司(si)的(de)一(yi)款10W隔離(li)式DC-DC轉換器，具有高達86%效(xiao)率(lv)、9-36 VDC輸入電壓(ya)范圍和15 VDC穩定輸出。其(qi)1英(ying)(ying)(ying)寸x1英(ying)(ying)(ying)寸x0.4英(ying)(ying)(ying)寸緊湊(cou)的(de)屏蔽金屬(shu)外殼設計、多(duo)種(zhong)保護功(gong)能(neng)(如欠(qian)壓(ya)、遠程開關功(gong)能(neng)和短路(lu)保護)以及符(fu)合國際安全標(biao)準，使(shi)其(qi)適用(yong)(yong)于(yu)需要高效(xiao)穩定電源的(de)多(duo)種(zhong)應用(yong)(yong)場景。

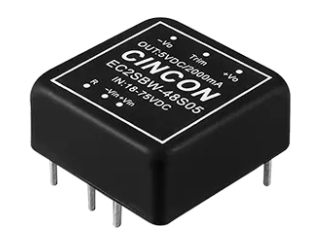

EC2SBW-24S15隔離式DC-DC轉換器CINCON

　　EC2SBW系列型號及參數如下：

MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT		INPUT CURRENT		% EFF	CAPACITOR LOAD MAX.
MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	MIN	MAX.	NO LOAD	FULL LOAD	% EFF	CAPACITOR LOAD MAX.
EC2SBW-24S33	9-36 VDC	3.3 VDC	0 mA	2500 mA	5 mA	425 mA	81	3300uF
EC2SBW-24S05	9-36 VDC	5VDC	0 mA	2000 mA	5 mA	496 mA	84	2200uF
EC2SBW-24S12	9-36 VDC	12 VDC	0 mA	835 mA	10 mA	486 mA	86	1000uF
EC2SBW-24S15	9-36 VDC	15VDC	0 mA	666 mA	10 mA	486 mA	86	680uF
EC2SBW-24D05	9-36 VDC	±5VDC	0 mA	±1000 mA	10 mA	496 mA	84	1200uF
EC2SBW-24D12	9-36 VDC	±12 VDC	0 mA	±416 mA	10 mA	486 mA	86	470uF
EC2SBW-24D15	9-36 VDC	±15 VDC	0 mA	±333 mA	10 mA	486 mA	86	330uF
EC2SBW-48S33	18-75 VDC	3.3 VDC	0 mA	2500 mA	5 mA	210 mA	82	3300uF
EC2SBW-48S05	18-75 VDC	5VDC	0 mA	2000 mA	5 mA	248 mA	84	2200uF
EC2SBW-48S12	18-75 VDC	12 VDC	0 mA	835 mA	5 mA	243 mA	86	1000uF
EC2SBW-48S15	18-75 VDC	15VDC	0 mA	666 mA	5 mA	243 mA	86	680uF
EC2SBW-48D05	18-75 VDC	±5VDC	0 mA	±1000 mA	5 mA	248 mA	84	1200uF
EC2SBW-48D12	18-75 VDC	±12 VDC	0 mA	±416 mA	8 mA	243 mA	86	470uF
EC2SBW-48D15	18-75 VDC	±15 VDC	0 mA	±333 mA	8 mA	243 mA	86	330uF
